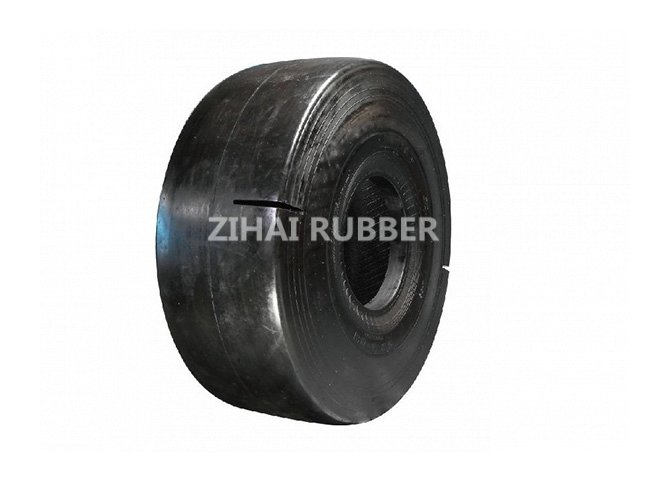

Suitable for loaders, scrapers, excavators works in mine, tunnel & hash rocky conditions,special rubber fomula provide the best cutting resistance and wear resistance,thicking smooth & super thicken tread increase the puncture resistance of rock, has a very high cutting resistance performance.
| Size | PR | Type | Rim | Overall Diameter (mm) | Section Width (mm) | Tread Depth (mm) | Maximum Load Capacity (Kgs) 10km/h | Inflation Pressure (Kpa) 10km/h |
| 12.00-24 | 20 | TL | 8.5 | 1245 | 315 | 56 | 6900 | 825 |
| 17.5-25 | 20 | TL | 14.00/1.5 | 1440 | 445 | 63.5 | 8250 | 575 |
| 18.00-25 | 40 | TL | 13.00/2.5 | 1671 | 495 | 78 | 17000 | 950 |
| 26.5-25 | 40 | TL | 22.00/3.0 | 1798 | 675 | 87.5 | 17000 | 550 |
| 29.5-25 | 40 | TL | 25.00/3.5 | 2018 | 750 | 95 | 20000 | 525 |
| 29.5-29 | 40 | TL | 25.00/3.5 | 2023 | 749 | 95 | 23600 | 625 |
